MySQL Issue: Table storage engine for ‘catalog_product_relation’ doesn’t have this option

July 30, 2016  |  1 Comments  |  by Raj (MagePsycho)  |  Linux, Mac OS-X, Magento, Mysql

When you export the Magento database dump from MySQL 5.5.x and try to import in MySQL 5.7.x, You are likely to face an error:

ERROR 1031 (HY000) at line 3002: Table storage engine for ‘catalog_product_relation’ doesn’t have this option


This is probably due to the table option that you have in your CREATE TABLE DDL: ROW_FORMAT=FIXED

Let’s check if there is any such string in the SQL dump (Ex: magento-db-dump.sql).

cat magento-db-dump.sql | grep '=FIXED'

Which resulted as:

) ENGINE=InnoDB DEFAULT CHARSET=utf8 ROW_FORMAT=FIXED COMMENT='Catalog Product To Website Linkage Table';

Refer – MySQL Row Format Option


Removing ROW_FORMAT=FIXED option from CREATE TABLE DDL will fix the issue.
So let’s try possible solutions.


sed -i 's/ROW_FORMAT=FIXED//g' magento-db-dump.sql

This didn’t work for me in MacOSx which resulted in following error:

sed: 1: “magento-db-dump.sql”: invalid command code m


sed -i '' 's/ROW_FORMAT=FIXED//g' magento-db-dump.sql

And even this resulted as:

sed: RE error: illegal byte sequence

But this one worked for me in MacOSx (Refer Mac OS X, Sed, and strange document encoding to know more about the issue)

LC_ALL=C sed -i '' 's/ROW_FORMAT=FIXED//g' magento-db-dump.sql

Re-check if the string has been removed or not:

cat magento-db-dump.sql | grep '=FIXED'

If the string is removed, now try to import as:

mysql -u <user> -p <db-name> < magento-db-dump.sql

Yay! Now it imported successfully.
Please do share and care if you liked this article.


Configure your Bash Shell for Magento 2 CLI Commands

June 29, 2016  |  No Comments  |  by Raj (MagePsycho)  |  Mac OS-X, Magento 2

One of the major improvement in Magento 2 is the introduction of CLI commands based on Symfony Console Component.

CLI commands can perform multiple tasks. Some of them are:

  • Installing Magento (and related tasks such as creating or updating the database schema, creating the deployment configuration, and so on)
  • Clearing the cache
  • Managing indexes, including reindexing
  • Creating translation dictionaries and translation packages
  • Generating non-existent classes such as factories and interceptors for plug-ins, generating the dependency injection configuration for the object manager.
  • Deploying static view files
  • Creating CSS from LESS
  • Providing “plug in” capability for third party developers

To invoke the CLI command:

php /path/to/your/magento2/bin/magento group:[subject:]action

To list all the available console commands:

php /path/to/your/magento2/bin/magento --list

which will output similar to:
Magento2 CLI Commands

In this article, we will discuss on how to configure bash shell for Magento 2 CLI to increase your productivity.

Bash Configuration Tips for Magento 2 Console

1. Install Bash Completion

Refer to our previous article – Install Bash Completion for Mac OS-X, which shows how to enable the completion feature for shell commands just by pressing [TAB]

2. Create useful bash aliases

Alias for bin/magento: mage2
Edit your ~/.bash_profile and add the following code:

alias mage2 = "./bin/magento"

Now instead of using:

php bin/magento [options]

You can simply use:

mage2 [options]

(Must be run from root of Magento2 path)

Alias for enabling module: mage2-module-enable
In order to enable module in Magento2, you have to run following series of command:

php bin/magento module:enable Vendor1_Module1 VendorN_ModuleN --clear-static-content
php bin/magento setup:upgrade

To simplify this process, you can simply add the alias as:

mage2ModuleEnable() {
	mage2 module:enable "$@" --clear-static-content && mage2 setup:upgrade
alias mage2-module-enable="mage2ModuleEnable"

Now you can simply enable the module(s) by running:

mage2-module-enable Vendor1_Module1 Vendor2_Module2

These are just a few examples. You can add similarly if needed.

Isn’t that a smarter way of executing CLI command?
Note: Don’t forget to reload the bash after adding aliases:

source ~/.bash_profile

3. Install Magento2 Bash Completion

Some of the cool dudes in Magento community are really doing amazing work. One of such work is magento2-bash-completion plugin.

In order to install this magento2-bash-completion, proceed as follow.
Download plugin to bash-completion hook folder

curl -o /usr/local/etc/bash_completion.d/magento2-bash-completion

Reload the shell

source /usr/local/etc/bash_completion.d/magento2-bash-completion

Time for Magic
Just write few letters of command and press [TAB], you will see as per the following gif:
Magento2 Bash Completion
(Image Source:

Do you have any useful tips on executing Magento2 CLI commands? Please do share in the comment.
(We will keep on updating this post with more cool bash tips for Magento 2 CLI, so keep your eye on it.)

Install Bash Completion for Mac OS-X

May 22, 2016  |  No Comments  |  by Raj (MagePsycho)  |  Linux, Mac OS-X

One of the nicest features of the modern shell is the built in “completion” support. This allows you to complete commands and their arguments easily without memorizing.

Unfortunately, Mac OS-X bash shell doesn’t have completion feature by default unlike Ubuntu(Debian based Linux OS).
But the good thing is you can easily install the auto completion by using Homebrew or Macports.

Homebrew being my favourite packaging tool for OS-X, I will be explaining the installation using this tool.

Bash Completion Installation

1. Install bash-completion package using brew

brew install bash-completion

Brew Bash Completion

2. Edit the ~/.bash_profile

vi ~/.bash_profile

And add the following code:

if [ -f $(brew --prefix)/etc/bash_completion ]; then
    . $(brew --prefix)/etc/bash_completion

3. Reload the bash shell

source ~/.bash_profile

Now try to type few letters of command and press [TAB], you will see the auto-completed command or auto-suggested commands(for more than one matches). For example:
nets[TAB] ->


net[TAB] ->

net-server               net-server5.18           net-snmp-config
net-server5.16           net-snmp-cert            net-snmp-create-v3-user


You can also install additional completions from Homebrew-Completions
All you have to do is:

brew tap homebrew/completions
brew install <formula>

If you know how to create bash completions, you can create your own file and drop in the folder:


After sourcing(loading) it, your custom completion is ready to take into account.

Please do share/comment on your favourite bash-completion.

Install & Configure Varnish Cache for Magento 2

May 19, 2016  |  13 Comments  |  by Raj (MagePsycho)  |  Linux, Magento 2

The performance of a website is always the key factor for the higher conversion rate. Fortunately, Magento 2 (both CE & EE) comes by default with the support for FPC (Full Page Caching), Varnish & Redis to make your store fly.
In this tutorial we will be discussing brief info about Varnish, it’s installation and configuration so bear with me.


Magento 2 supports Varnish versions 3.0.5 or later or any Varnish 4.x version.
And Magento team strongly recommends using Varnish in production as the built-in full-page caching (to either the file system or database) is much slower than Varnish, and Varnish is designed to accelerate HTTP traffic.

Varnish Cache is an open source web application accelerator (also referred to as an HTTP accelerator or caching HTTP reverse proxy). Varnish stores (or caches) files or fragments of files in memory; this enables Varnish to reduce the response time and network bandwidth consumption on future, equivalent requests. Unlike web servers like Apache and Nginx, Varnish was designed for use exclusively with the HTTP protocol.


We have carried out the Varnish installation in the following enviroment:

  • Ubuntu – 14.04 LTS
  • Nginx – 1.9.6
  • MySQL – 5.6.28
  • PHP – 5.6.20 (but PHP 7 is recommended)
  • Magento EE – 2.0.5


Run the following series of command as a root user (sudo su).

apt-get install apt-transport-https
curl | apt-key add -
echo "deb trusty varnish-4.1" \
     >> /etc/apt/sources.list.d/varnish-cache.list
apt-get update
apt-get install varnish

If everything goes right you should be able to see the Varnish version with:

varnishd -V


Once Varnish is installed, you need to configure it and your web server(Nginx in our case).

Configure your Web Server(Nginx)

Configure your web server to listen on a port (say: 8080) other than the default port 80 because Varnish responds directly to incoming HTTP requests, not the web server.
For this add the ‘listen’ directive in ‘server’ block as:

server {
    listen 8080 default_server;

to default nginx configuration file (generally located at /path/to/nginx/sites-enabled/default)

Configure Varnish Configuration

1. Modify Varnish System Configuration

vim /etc/default/varnish

And edit the file to have similar code:


# Maximum number of open files (for ulimit -n)

# Maximum locked memory size (for ulimit -l)
# Used for locking the shared memory log in memory.  If you increase log size,
# you need to increase this number as well

DAEMON_OPTS="-a :80 \
             -T localhost:6082 \
             -p http_resp_hdr_len=64000 \
             -f /etc/varnish/default.vcl \
             -S /etc/varnish/secret \
             -s malloc,256m"

2. Modify default.vcl
Make a backup of default one.

cp /etc/varnish/default.vcl /etc/varnish/default.vcl.bak
vim /etc/varnish/default.vcl

And edit the lines under ‘backend default’:

# Default backend definition. Set this to point to your content server.
backend default {
.host = "";
.port = "8080";


  • .host – fully qualified host name or IP address and listen port of the Varnish backend or origin server; that is, the server providing the content Varnish will accelerate. Typically, this is your web server.
  • .port – the web server’s listen port (8080 in this example)

Note:This is the minimal configuration. You need to use the configuration which you get from Magento 2’s Varnish Export (Ref – #3).

3. Configure Magento to use Varnish
Instead of manually editing default.vcl, Magneto 2 comes up with an export option for it.

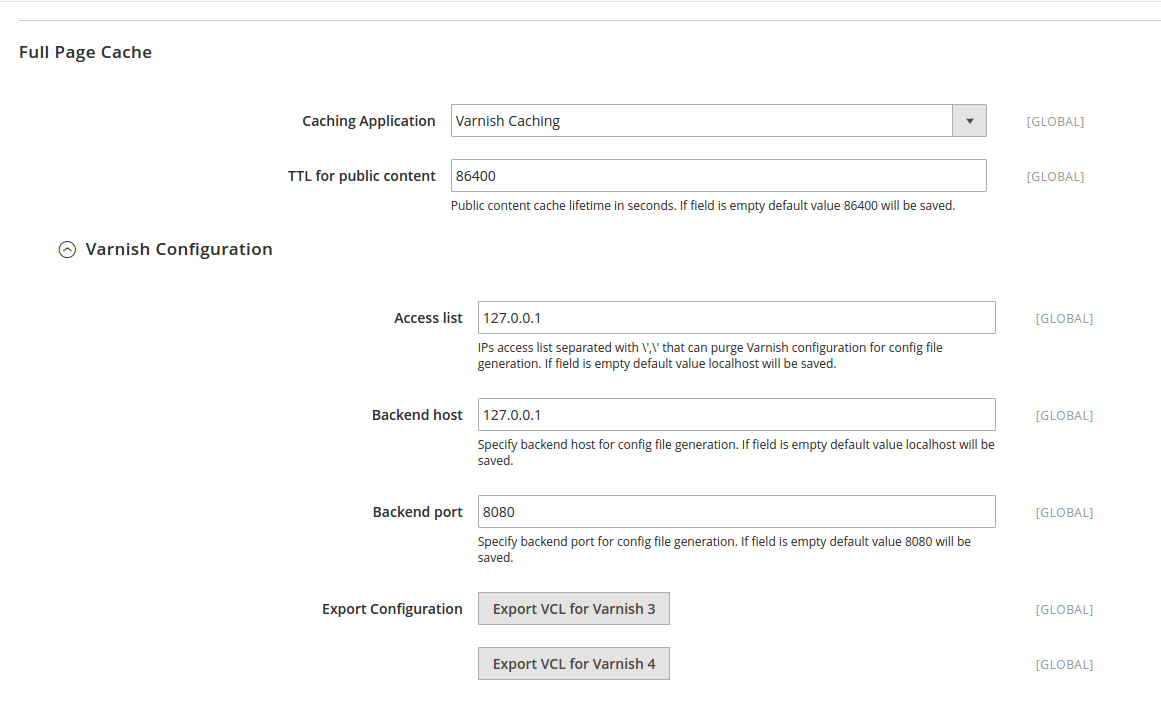

First enable the Full Page Cache to use Varnish (Go to Admin > Stores > Configuration > Advanced > System > Full Page Cache), you will see as:
Save the settings and hit the Export VCL button (Varnish 3 or 4 as per your Varnish Version).
And use this default.vcl to replace the file in /etc/varnish/default.vcl

Finally, restart the Varnish & Nginx

service nginx restart
service varnish restart


I assume You have followed all the above steps (Installation & Configuration). Now lets check if Varnish cache server is taking into account for HTTP response or not.

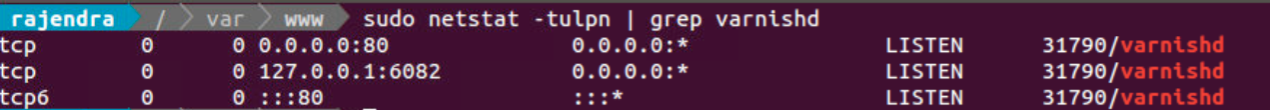

Check if Varnish is listening to port 80
Run the following command:

netstat -tulpn | grep varnishd


Verify contents in var/cache, var/page_cache folder is not regenerated
Since FPC is configured to serve the content from Varnish, once cleared, cache folders (var/cache, var/page_cache) should always be empty .

Verify the HTTP response headers

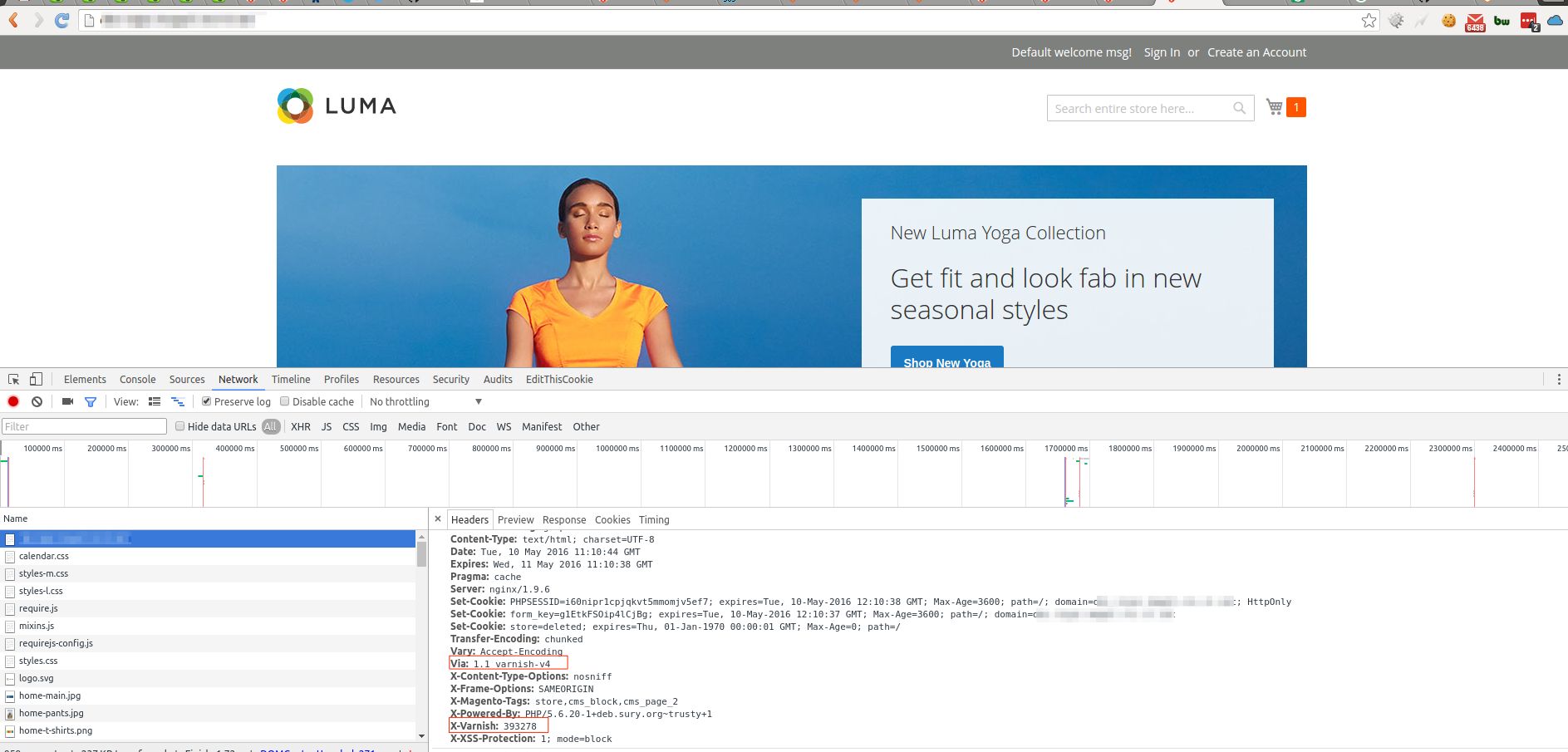

Load your Magento 2 Frontend and check the response from browser console, you will see similar as shown in the below screenshot:

Or you can simply use CLI as:

curl -I

And You will see some similar Varnish keywords.

Voila, you’re done. Let your store fly!
Please do comment or contact us if you have any issues regarding Varnish + Magento2 Installation & Configuration.
